AC380V Single Side Automated Spot Welder For Battery

Brand Name : BT

Model Number : BT-960/960XZ

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : USD 9000-13000 Set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 30 set month

Delivery Time : 15 work days

Packaging Details : Wooden case

Application : Power Battery, torsion bar battery, energy storage Electric Battery

Power : 4KW, 380V(AC), 50/60HZ

Air pressure : 0.4-0.8Mpa,No water, no impurities

Suitable for core range : 14500/18500/18650/26650/21700/26650/32700 series-parallel combination

Maximum stroke : X Axis 350MM, Y axis 450MM

Rotation Angle : set within plus or minus 45 degrees

Production Efficiency : About 2000-2500 pcs per hour

Spot welding speed : 2-10ms

Display Interface : 7-inch color touch screen, Chinese and English display

Welding head power : Servo Motor

Spot welding data : CAD data import/dot matrix data import/manual input

Dimensions : L900*W900*H1630MM

Weight : About 180kg

Warranty : 2 Years

Contact Now

Product Description

BT-960/960XZ single-side automatic battery spot welding machine for Battery manufacturing equipment

Product Application:

BT-960 is a standard singel-side automatic spot welding machine ,it no welding head rotation function, and BT-960XZ

with welding head rotation function.Suitable for 14500 / 18500 / 18650 / 18730 / 21700 / 26650 / 32700 multi-parallel

multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack,

Scooter Electric Vehicle Battery, etc.

Product characteristics:

♦ Automatic welding, uniform solder joints, good consistency, improve the pass rate

♦ Real-time monitoring of welding current, automatic shutdown of false welding or explosive

fire alarm

♦ Optional spot welding specification welding (positive and negative pole can set different current)

♦ The coordinate parameters of spot welding can be imported by U Disk

♦ The running mechanism adopts Servo Motor and linear module, and the positioning is accurate

♦ Automatic production quantity collection, showing the current production efficiency

BT-960/960XZ single-side automatic spot welding machine

for lithium-ion battery sopt welding

SPECIFICATIONS FOR BT-960/960XZ
BT-960 without welding head rotation function
BT-960XZ with welding head rotation function
Y-axis Travel 0-450MM(Can be customized)
x-axis Travel 0-350mm(Can be customized)
Spot Welding Speed 2-10s
Welding output current Max8000A
Efficiency 2000-2500PCS/H
Nickness sheet thickness 0.1 mml-0.3 mm
Welidng pin 1.7mm
Run power Servo electric
Spot welding data CAD data import/dot matrix data import/manual input
Air pressure 0.4-0.8Mpa,No water, no impurities
Display Interface 7-inch color touch screen, Chinese and English display
Dimensions L900*W900*H1630MM
Weight 180KG
Warranty 2 years

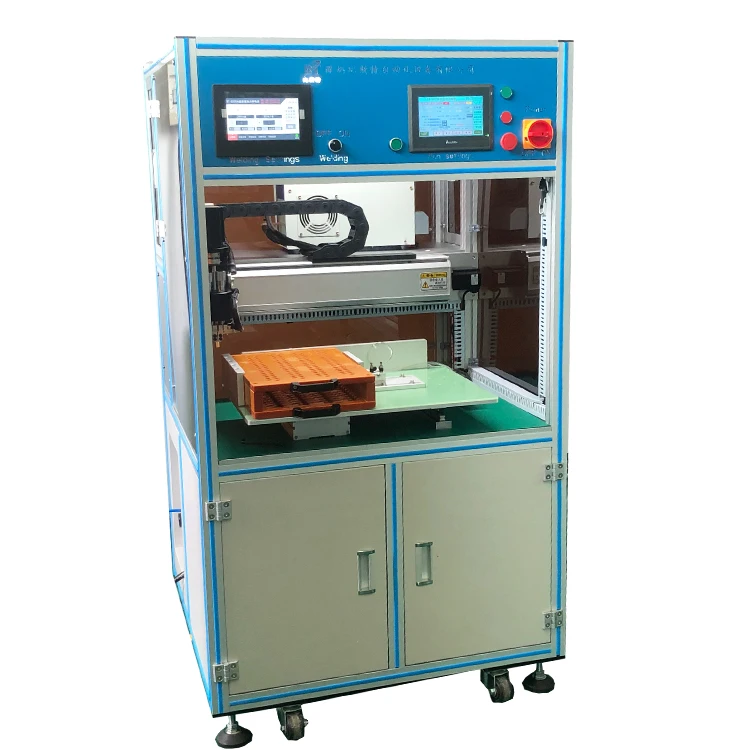

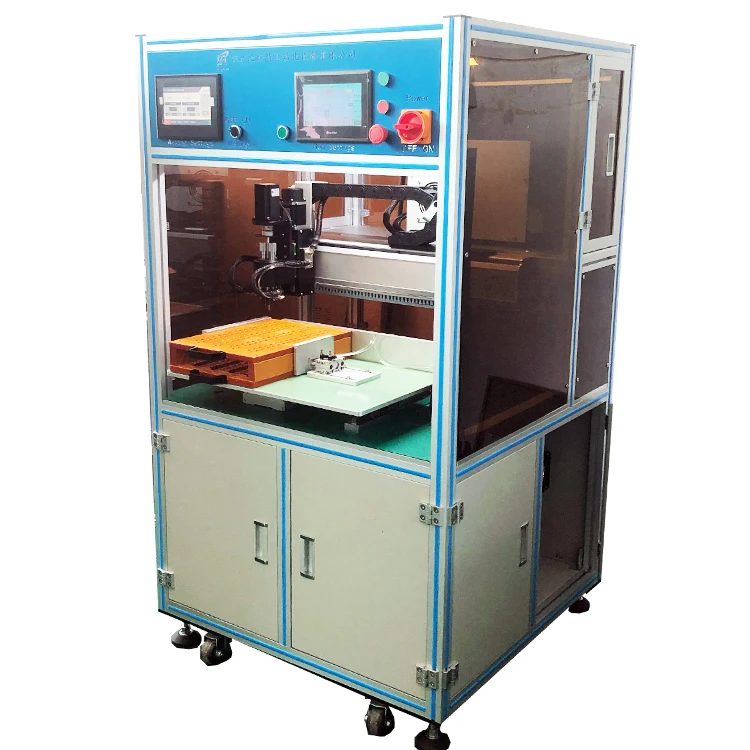

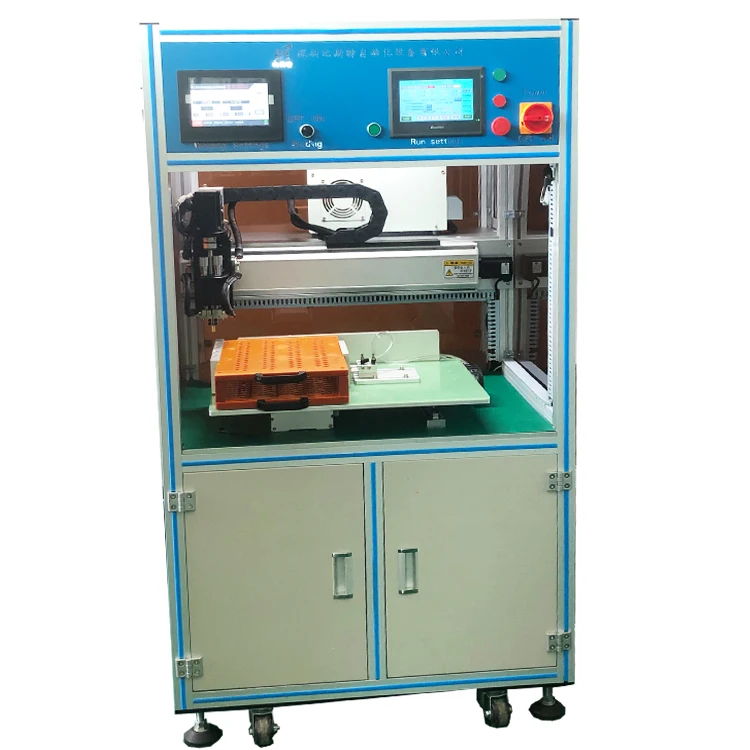

AC380V Single Side Automated Spot Welder For BatteryAC380V Single Side Automated Spot Welder For BatteryAC380V Single Side Automated Spot Welder For Battery
